combined Air Compressor,7kw atlas copco compressor

FOB Reference Price:Get Latest Price
US $100-23,123 / Sets | 1 Set/Sets combined Air Compressor (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Screw
Configuration:
Portable
Power Source:
AC Power
Lubrication Style:
Lubricated
Mute:
Yes
Place of Origin:
China (Mainland)
Brand Name:
ATLAS COPCO
Model Number:
GA 7
Voltage:
380V/50Hz or Customized
Dimension(L*W*H):
1300*800*1115mm
Weight:
330kg
Certification:
CE/ISO9001
Quality:
high
Brand:
atlas copco
Market:
all over the world
Price:
competitive
After-sales Service Provided:
No overseas service provided
Warranty:
1 year
Supply Ability
Supply Ability:
300 Set/Sets per Month combined Air Compressor
Packaging & Delivery
Packaging Details
strong package of combined Air Compressor
Port
shanghai
Lead Time :
within10days after the order confirm

combined  Air Compressor,7kw atlas copco compressor

Product Description

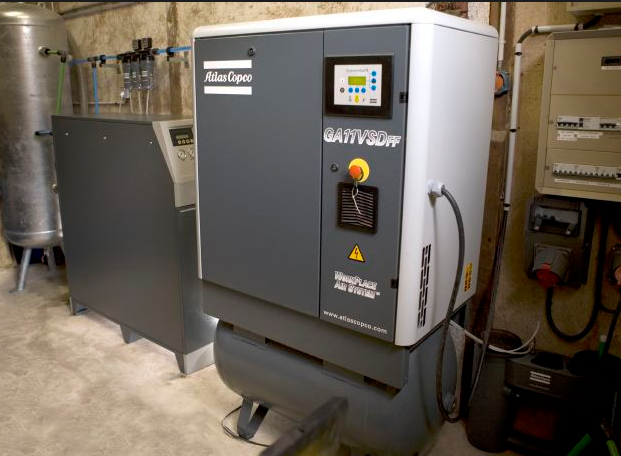

Atlas Copco Air Compressor
Model: GA5 GA7 GA11
Atlas Copco screw air compressor

FAN
Dedicated cooling fan with optimized capacity for each cooler ensuring the right amount of cooling air is delivered in the most efficient manner.
Finger-proof protection meeting safety codes all over the world.


COOLER
Optimally sized aluminium block and fin style coolers guaranteeing ideal running under all conditions.
Horizontally mounted on the top, the coolers are easily accessible for cleaning and easy for ducting.

CANOPY
The sophisticated flow and canopy design as well as top quality production process control generate an extremely low noise level of 60-62 dB(A).


ELEKTRONIKON
Advanced microprocessor based automatic electronic control and monitoring optimizes the operation for efficiency and reliability through fantastic functions such as ES, DSS and Dual setting.

AIR INLET FILTER
Generously dimensioned air intake filter for efficient operation even in dirty conditions.

INTEGRATED REFRI GERANT DRYER
The Full Feature variants include, as standard, an integrated refrigerant dryer removing water from the compressed air to protect your air piping network, production process and end products.


MOTOR
Eff 1 (EPAct) high efficiency, totally enclosed fan-cooled (TEFC), IP55, class F electric motor for continuous trouble-free operation.
Bearings greased for life.

ELEMRNT
Atlas Copco's patented screw element for optimal energy efficiency and outstanding reliability.


DRIVE ARRANGEMENT
Top quality V-belt drive system.
The pulleys and belts ensure maximum life with minimum slip and wear.
The V-belts use an optimized belt notch profile that makes the belts run quietly, coolly and smoothly for the highest efficiency and maximum life.
High quality slide base provides easy belt tensioning that delivers at least same performance with all kinds of automatic tension systems.



Basic InformationPower Supplier:  380V/50Hz or Customized
Discharge Temperature:  For Air cooling  < Environment Tempreture+15 C    For water Cooling < 40 C
Transmission:
Cooling Modle:  A=Air Cooling W=Water Cooling
No. of Compressor stage:
WorkPlace
Modle No.Air Discharge Pressure DischargeBasic InformationNoise LevelMotor PowerStarting ModleTank-Mounted
External DimensionsNet weight
M3/MinMpa   dB(A)kwhp L(mm)W(mm)H(mm)kgs
GA 50.90.75S-SA/WB-D605.57.5Y-Triangle Start14986991729317
0.80.85
0.71
0.51.3
GA 71.260.85S-SA/WB-D6171014986991729330
1.181
1.031
0.851.3
GA 111.840.75S-SA/WB-D62111514986991729353
1.70.85
1.561
1.321.3
WorkPlace Full Feature
Modle No.Air Discharge Pressure DischargeBasic InformationNoise LevelMotor PowerStarting ModleTank-Mounted
External DimensionsNet weight
M3/MinMpa   dB(A)kwhp L(mm)W(mm)H(mm)kgs
GA 50.90.75S-SA/WB-D605.57.5Y-Triangle Start14986991729360
0.80.85
0.71
0.51.3
GA 71.260.85S-SA/WB-D6171014986991729375
1.181
1.031
0.851.3
GA 111.840.75S-SA/WB-D62111514986991729403
1.70.85
1.561
