The ultimate smart solution, driven by efficiency
Atlas Copco’s GA 30+-90 compressors bring you outstanding sustainability, reliability and performance, while minimizing the total cost of ownership. A choice of three premium compressor types (GA VSD, GA+and GA) provides you with the compressed air solution that perfectly matches your requirements with clear value propositions. Built to perform even in the harshest environments, these compressors keep your production running efficiently.
New heights in sustainability
The GA 30+-90 family enables you to realize sustainable productivity through lower lifecycle costs and maximum uptime. IE3 or NEMA Premium Efficiency motors in combination with the highly efficient element minimize operating cost. The integrated dryer R410A reduces ozone depletion and protects the environment. Maximum uptime is achieved by maintenance from one side and complete drive train accessibility.
Outstanding performance is ensured by design, with IE3 or NEMA Premium Efficiency motors in combination with Atlas Copco’s highly efficient element and an oversized cooling arrangement resulting in significant energy savings. Internal pressure drops from inlet to discharge are optimized. Efficient smart compressor controls and Atlas Copco algorithms minimize the working pressure band, saving energy.
New milestones in reliability
The reliability of the GA 30+-90 range starts with the cool canopy and low element outlet temperatures, an oversized separate oil cooler and an aftercooler with patented integrated mechanical separator. The three-stage air/oil separation ensures low oil consumption. All electrical cubicles are in overpressure, preventing electrically conductive dust, thus increasing the lifetime of electrical components.
GA VSD: Ultimate energy saver
Unique integrated Variable Speed Drive (VSD) technology for on average 35% energy savings.
Industry-leading operating turndown range and flexible pressure selection: 4-13 bar.
Start under system pressure due to special VSD motor, no idling time.
Integrated Dryer Saver Cycle saves up to 60% of the dryer’s electrical consumption.
Smart Elektronikon® graphic compressor controller with high-definition color display working to a set point minimizes pressure drops.
GA+: Industry-leading performance
Industry-leading Free Air Delivery and low energy consumption.
IE3 / NEMA Premium Efficiency motor combined with highly efficient element.
Low noise emission suitable for workplace installation.
Environmentally-friendly R410A integrated dryer reduces footprint and pressure drops.
>Smart Elektronikon® graphic compressor controller with high-definition color display.
GA: Premium compressor
High performance Free Air Delivery.
IE2 / NEMA Premium Efficiency motor in combination with highly efficient element.
Premium quality at the lowest initial investment.
Efficient environmentally-friendly R410A integrated dryer reduces footprint and pressure drops.
Ensured efficiency of Elektronikon® controller with connectivity.
A step ahead in monitoring and controls
The next-generation Elektronikon operating system offers a wide variety of control and monitoring features that allow you to increase your compressor’s eff ciency and reliability. To maximize energy eff ciency, the Elektronikon controls the main drive motor and regulates system pressure within a predef ned and narrow pressure band.
3.5-inch high-def nition color display with clear pictograms
and extra 4th LED indicator for service.
Graphical display of key parameters (day, week, month) and
32 language settings.
Internet-based compressor visualization using a simple
On-screen Delayed Second Stop function and VSD savings
Graphical indication Serviceplan, remote control and
Software upgrade available to control up to 6 compressors
by installing the optional integrated compressor controller.
online & moBile monitoring
Monitor your compressors over the Ethernet with the
new.Elektronikon controller.Monitoring features include warning indications,compressor shut-down and scheduling. The maintenance Atlas Copco App is available for
iPhone/Android phones as well as iPad and Android tablets. It allows fngertip monitoring of your compressed air system through your own secured network.
VSD: Driving down your energy costs
Over 80% of a compressor’s lifecycle cost is taken up by the energy it consumes. Moreover, the generation of compressed air can account for more than 40% of a plant’s total electricity bill. To cut your energy costs, Atlas Copco pioneered Variable Speed Drive (VSD) technology in the compressed air industry. VSD leads to major energy savings, while protecting the environment for future generations. Thanks to continual investments in this technology, Atlas Copco offers the widestrange of integrated VSD compressors on the market.
why atlas copco Variable speed Drive technology?
„ On average 35% energy savings during fluctuations in production demand with an extensive turndown range.
„ Integrated Elektronikon Graphic controller controls the motor speed and high efficiency frequency inverter.
„ No wasted idling times or blow-off losses in normal operation.
„ Compressor can start/stop under full system pressure without the need to unload with special VSD motor.
„ Eliminates peak current penalty during start-up.
„ Minimizes system leakage due to a lower system pressure.
„ EMC Compliance to directives (2004/108/EG).

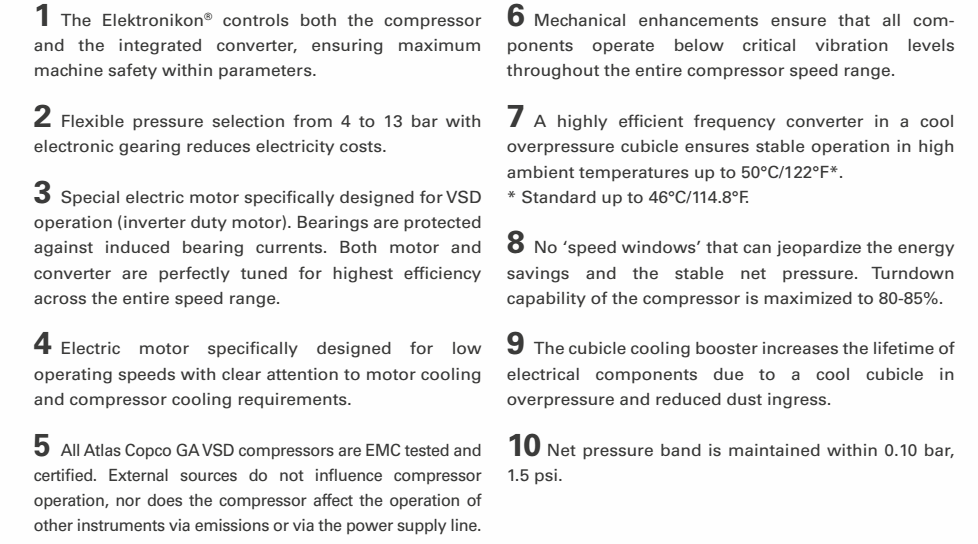

what is unique about the integrated atlas copco ga vsd?
