Atlas copco diesel air compressor price

FOB Reference Price:Get Latest Price
US $1,580-32,580 / Set | 1 Set/Sets diesel air compressor (Min. Order)
Supply Ability:
1000 Set/Sets per Month diesel air compressor
Port:
shanghai port
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Screw
Configuration:
Portable
Power Source:
Diesel
Lubrication Style:
Lubricated
Mute:
No
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Atlas Copco
Model Number:
XAS137
Voltage:
380V
Dimension(L*W*H):
3553*1677*1465mm
Weight:
1350kg
Certification:
ISO9001 CE
Warranty:
One Year
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
Atlas copco diesel air compressor price
Color:
Yellow
Motor maker:
DEUTZ
Motor power:
58kw
Noise:
73±3DBA
Packaging & Delivery
Packaging Details

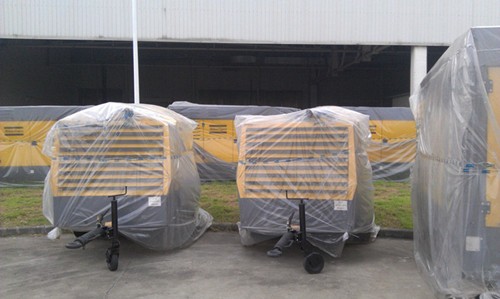

standard export packing of diesel air compressor
Delivery Time
3days after receipt of deposit

Atlas copco diesel air compressor price

Product Description

Product Description



TECHNICALPARAMETERS

Compressor Data   XAS137
Free Air Delivery @ Normal Working Pressure127 L/S (7.6 m³ /min )
Normal Working Pressure7 bar (269 CFM)
Minimum / Maximum Unloading Pressure4 / 8.5 bar
Compression Stages1
Fuel Tank Capacity175 L
Sound Pressure Level (ISO2125)73 dB(A) +/- 3
Maximum Ambient Temperature at sea level50 ° C
Maximum Altitude3000 m
Minimum Starting Temperature-10 ° C / -25 ° C (with assist)
Diesel Engine Data  DEUTZ BF4M2011
Horsepower Developed @ Rated Speed58  kW
Length3553 mm ( within towbar )
Width1677 mm
Height1465 mm
Weight 1350 kg



Features



- Small dimensions, light weight

- Single axle mounted

- Low noise output

- FuelXpert™ for optimized fuel consumption

- Full shift fuel tank

- Single side service points

- Full length service doors

- Centralized fluid drains

- Electronic multi-function controller





- Lowest total cost of ownership

- Easy to transport

- Easy to manoeuver at worksite

- Ideal for urban use

- Operator & environmental safe

- Comprehensive monitoring

- Best fuel economy in class









Advantages

 Advantages

Economical – You can achieve large fuel savings at partial compressor load with FuelXpert™, which electronically regulates engine speed and the air inlet valve to optimize fuel consumption.




Energy savings  highest air volume with the DrillAir™ screw element.






Comfortable for your operators – Silencing foam and buffers reduce noise levels, improving the conditions for your operators and guaran­teeing full compliance with all directives for outside noise.






Easy operation – With the user-friendly control panel you get comprehensive digital diagnostics, a clear display, easy parameter setting and rapid access to your stored data.
Smooth, fast on-road towing and high maneuverability thanks to a tandem undercarriage.
